Some of our noteworthy achievements include

Biggest Scrubber for Pickling of Special Stainless Steel Wire Rods
Item : Packed Column Scrubber for HF,HNO3 & H2SO4
Application : Pickling of Special Stainless Steel Wire Rods
Specifications : Flow Rate = 76,600 m3/hr
Diameter = 3900 mm
Height = 8730 mm
M.O.C = PP+FRP




Biggest Blower for Pickling of Special Stainless Steel Wire Rods
Item : Exhaust Blower for HF,HNO3 & H2SO4
Application : Pickling of Special Stainless Steel Wire Rods
Specifications : Flow Rate = 76,600 m3/hr
Static Pressure = 225 mmWC
M.O.C = PP+FRP




Biggest Scrubber for SO2 Scrubbing
Item : Horizontal Baffle Type Scrubber for SO2 Scrubbing
Application : Chemical Industry
Specifications : Flow Rate = 325,000 m3/hr
Diameter = 5800 mm
Length = 22000 mm
M.O.C = FRP (using Vinyl Ester Resin)




Biggest Scrubber for Scrubbing Pure Chlorine Gas (1700 Kg/hr)
Item : Packed Column Scrubber for Chlorine
Application : Chemical Industry
Specifications : Diameter = 1400 mm
Height = 14000 mm
M.O.C = FRP (Using Novolac Based Vinyl Ester Resin)




First Rotating Vacuum Drum Filter in FRP Construction
Item : Rotating Vacuum Drum Filter
Application : Chemical Industry
Specifications : Diameter = 1000 mm
Length = 2150 mm
M.O.C = FRP (using Vinyl Ester Resin)
Designed to withstand Full Vacuum




Biggest Shop Fabricated FRP Storage Tank
Item : FRP Storage Tank
Application : Chemical Industry
Specifications : Capacity = 100 m3
Diameter = 5000 mm
Length = 6160 mm
M.O.C = FRP (Using Novolac Based Vinyl Ester Resin)




International Participation
JR Fibreglass was the first Indian Company amongst all the Engineering Fields to Participate in ACHEMA Exhibition at Frankfurt, Germany.

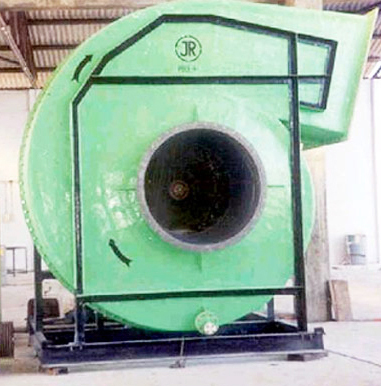

High Pressure FRP Centrifugal Fans
Item : High Pressure Centrifugal Fans
Application : Petrochemical Industry
Specifications : Flow Rate = 6000 m3/hr
Static Pressure = 800 mmWC
M.O.C = FRP (Using Novolac Based Vinyl Ester Resin)
